Description

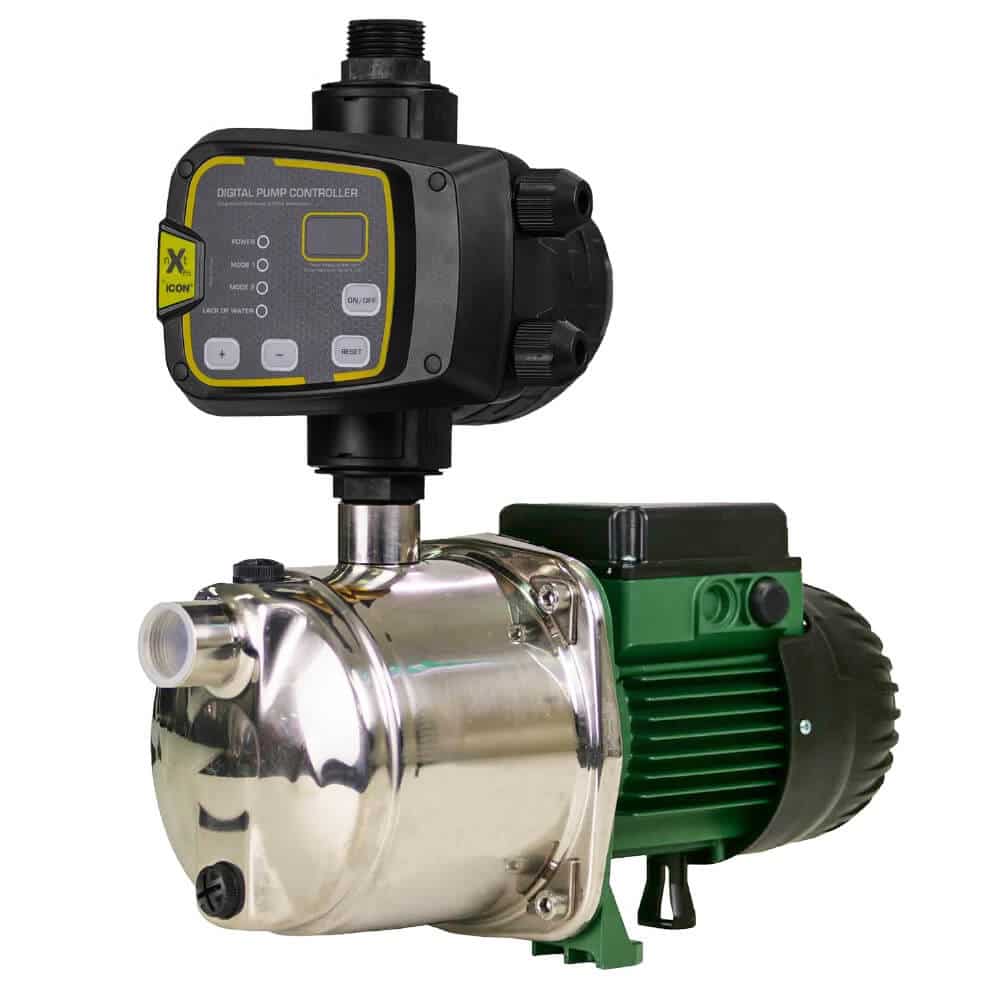

DAB-EUROINOX30/50 NxT Pro Self Priming Stainless Steel Horizontal Multistage Pump 808421
Euroinox Stainless Steel Self Priming Horizontal Multistage Pumps. Fully adjustable pressure switch to reduce pressure fluctuations. Stainless steel pump body for bacteria and corrosion resistance. Brass non return valve and fittings for strength and durability. Replaceable TEFC motor with air gap to stop seal failure water entry. 2 year pump parts & labour warranty.
Note: EUROINOX pumps are AS/NZS4020 approved for drinking water.

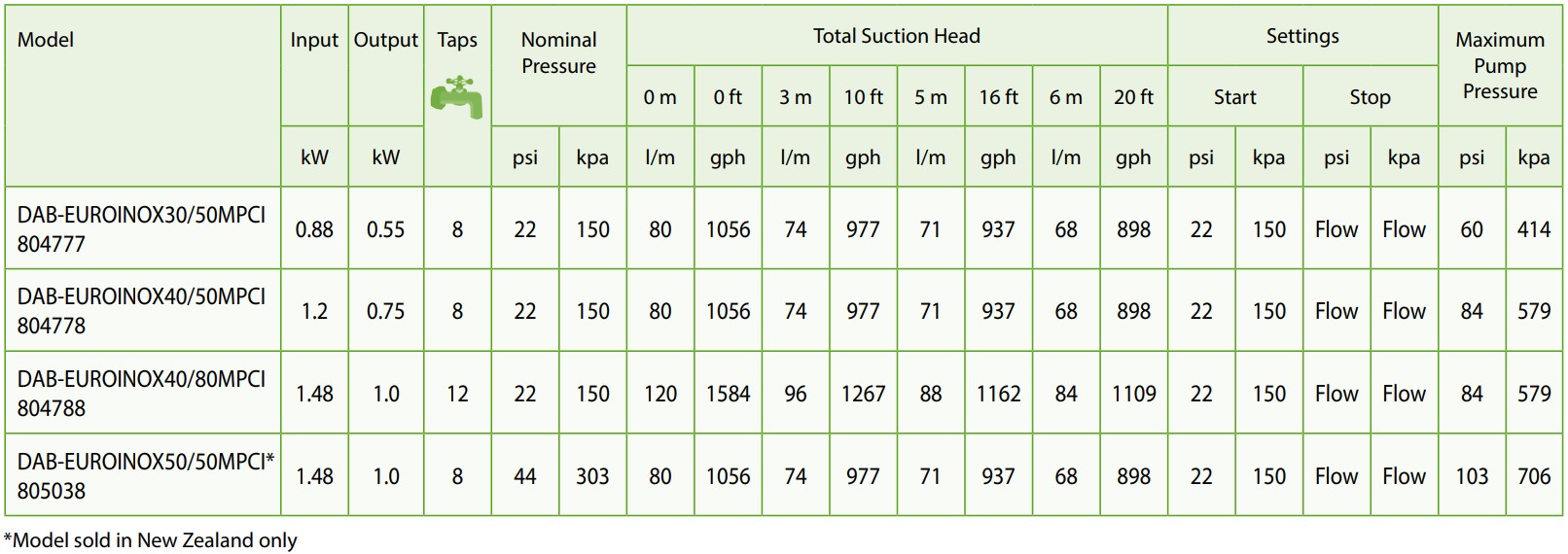

Technical Specifications
| Brand | DAB Pumps |
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | 4.22 Bar |
| Approval | Approved For Drinking Water |
| Flow Range Category | a. 0 – 99 L/min |
| Flow Rate (L/min) | 80 L/min |
| Hp | 0.75 Hp |
| kPa | 427 kPa |
| Kilo Watts | 0.55 kW |
| Head Range Category | b. 40 – 59 m |
| Max Head (m) | 42.2 m |
| Port Size Inlet | 1″ BSPF inlet |
| Port Size Outlet | 1″ BSPM outlet |
| Powered | Electric |
| Taps | 8 Taps |
| Warranty (months) | 24 Months |
| Volts | 240 V |
| Watts | 550 W |
